Application

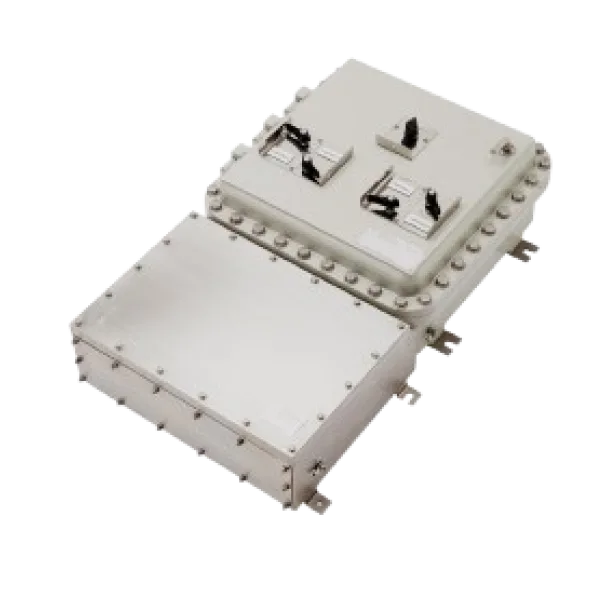

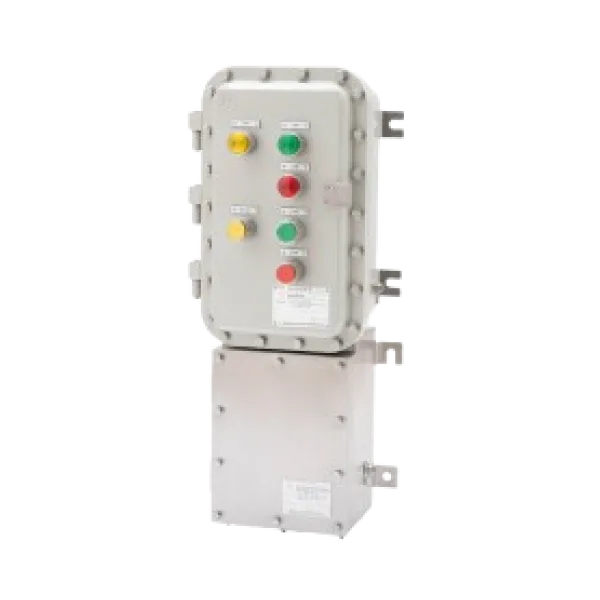

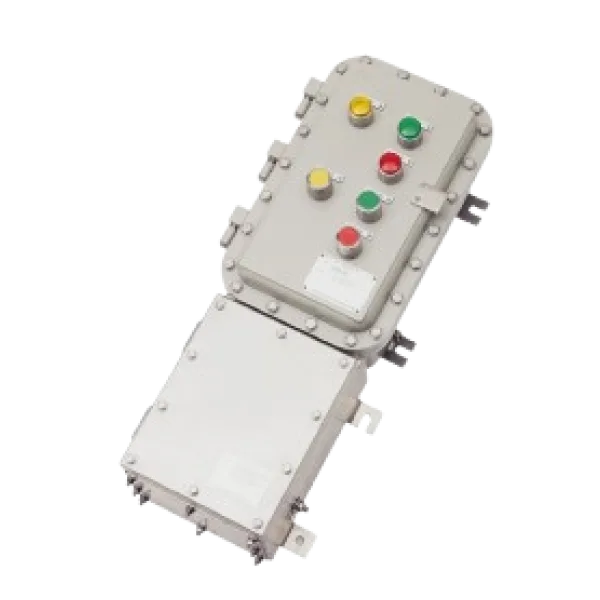

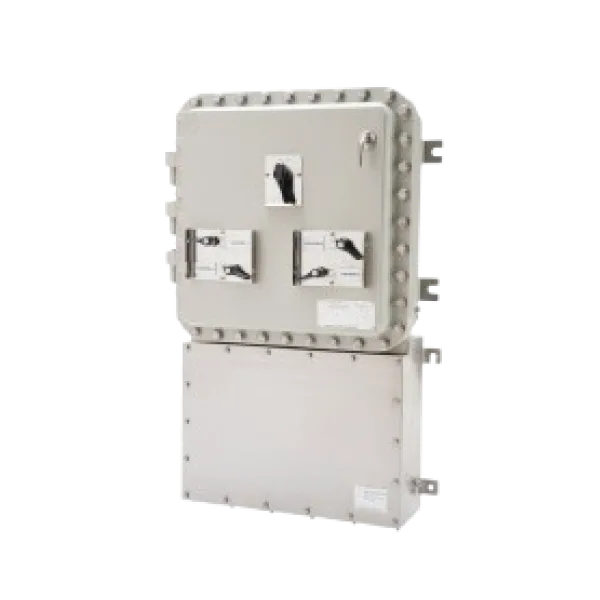

DCT1DE control boxes consist of an Ex d enclosure in aluminium alloy, and JBE3B Ex e enclosure in stainless steel are designed for use
- in hazardous areas, zone 1, 2 and zone 21, 22.
- installation in petroleum refineries, chemical plants, storage areas where hazardous substances are handled.
- instrument box with circular or rectangular window.
- containing analogue and digital measuring instruments.
- indicating the electrical function performed.
Specification
Ex d enclosure
- Body, cover : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (Grey) (optional offshore painting- acrylic polyurethane coating)
- Bolts : Stainless steel, SUS 304 (optional SUS 316)
- Sealing (O-ring) : Silicone
Ex e enclosure
- Body, cover : Stainless steel, SUS 304 or SUS 316
- Bolts : Stainless steel, SUS 304 or SUS 316
- Sealing gasket : Silicone
