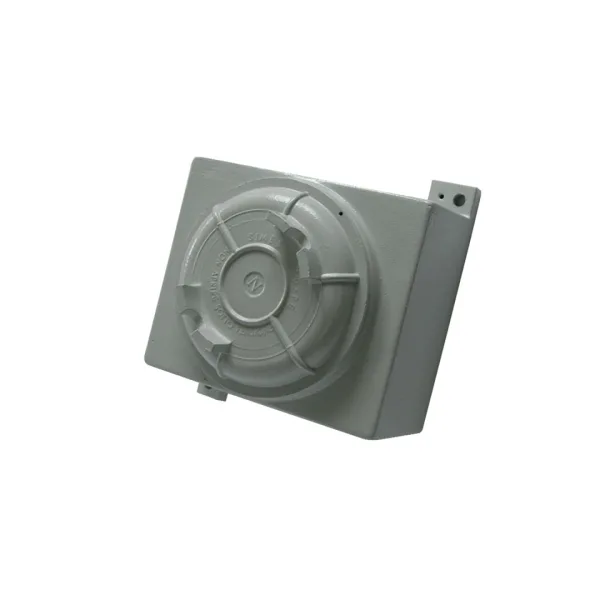

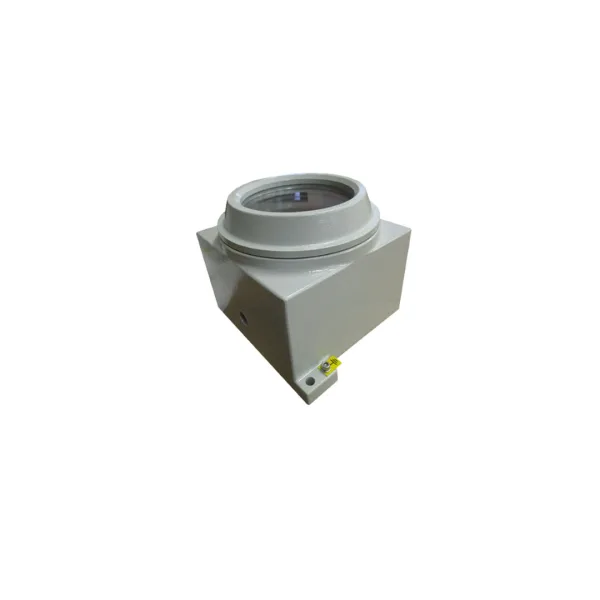

GUB Stainless Steel Exd Enclosure
CE2K manufactures and provides to its customers a complete range of aluminium & stainless steel SS316 flame-proof enclosures IIC.
Enclosures are available in a stationary configuration (with or without window) or in a portable configuration.
Material
Enclosure material: Copper free aluminium or stainless steel AISI316L
Windows (option): Borosilicate tempered glass
Degree of protection: IP66
Temperature
-50°C to +80°C (without window, EPL Gb)
-40°C to +80°C (without window, EPL Gb and Db)
-40°C to +80°C (with window, EPL Gb and Db)
Ex marking
II 2G, Ex db IIC T6…T4 Gb
or
II 2GD, Ex db IIC T6…T4 Gb, Ex tb IIIC T85°C…T135°C Db
Standards
EN 60079-0 / EN 60079-1 / EN 60079-11 / EN 60079-31
IEC 60079-0 / IEC 60079-1 / IEC 60079-11 / IEC 60079-31
Suitable for
Zone 1 / Zone 2 / Zone 21 / Zone 22
Certificates no.
– ATEX: EPT 17 ATEX 2760 X Issue 1
– IECEx: IECEx EUT 17.0029X Issue 2
