Application

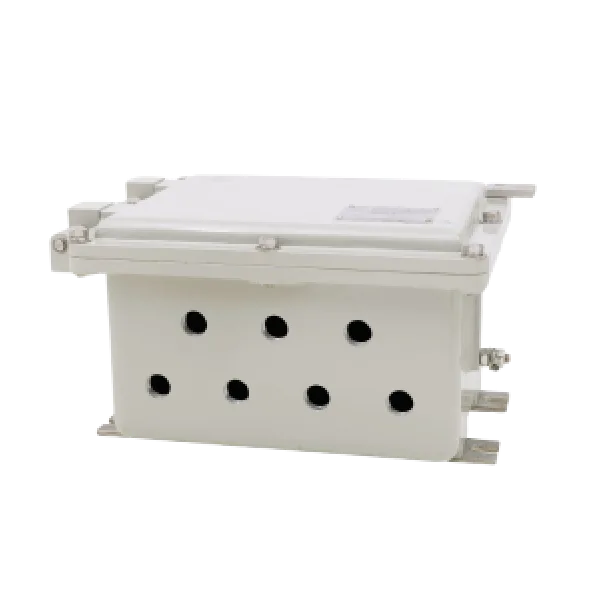

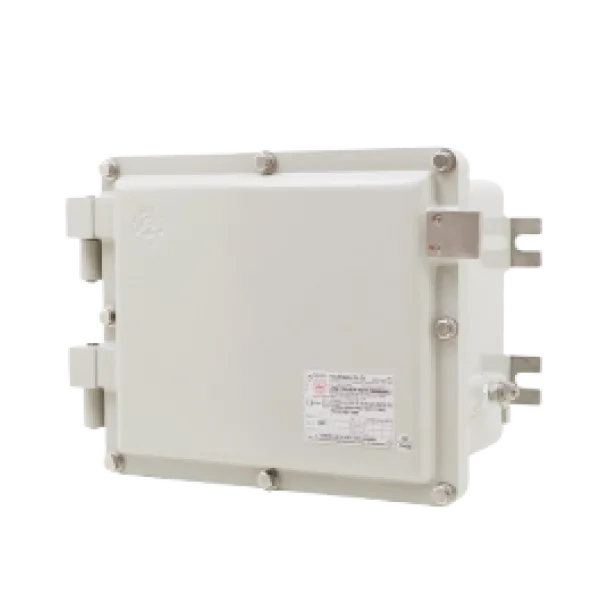

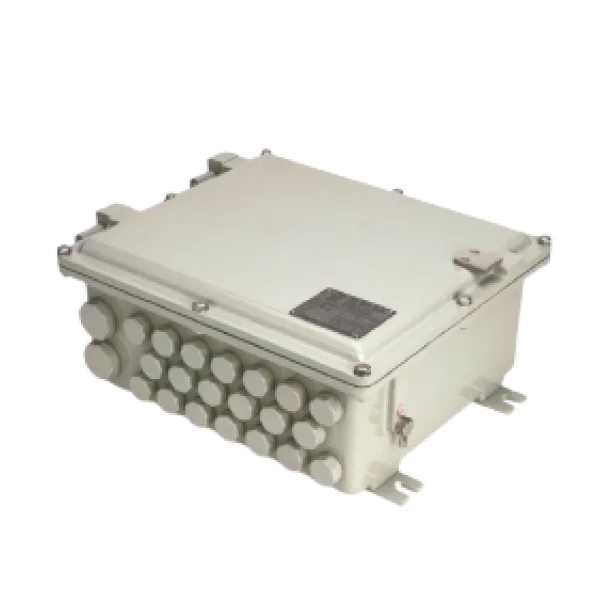

The JBE1 junction boxes are designed for tap, splice or connecting of conductors for control, instrument or power circuit. These boxes are designed for explosive atmospheres zone 1, 2 and zone 21, 22.
Specification
- Body, cover : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (Grey) (optional offshore painting – acrylic polyurethane coating)
- Sealing (O-ring) : Silicone -40°C to +175°C
- Bolts : Stainless steel, SUS 304 (optional SUS 316)
Electrical Rating
- Rated voltage : up to 1000V.
- Rated current : up to 420A.
(depending on type of terminal used)
