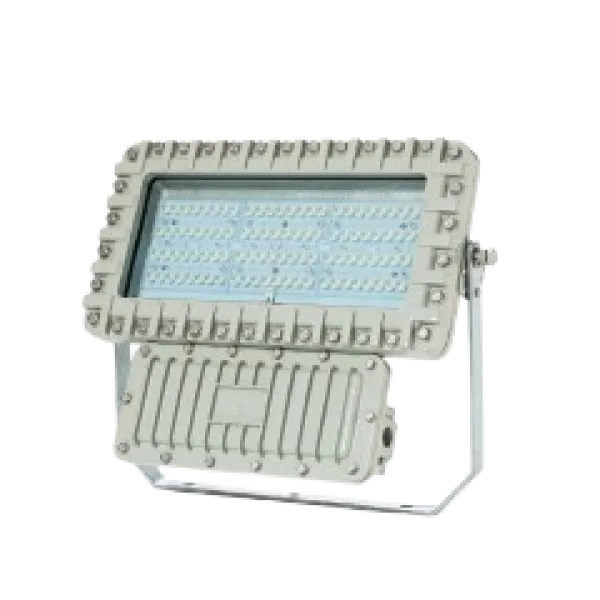

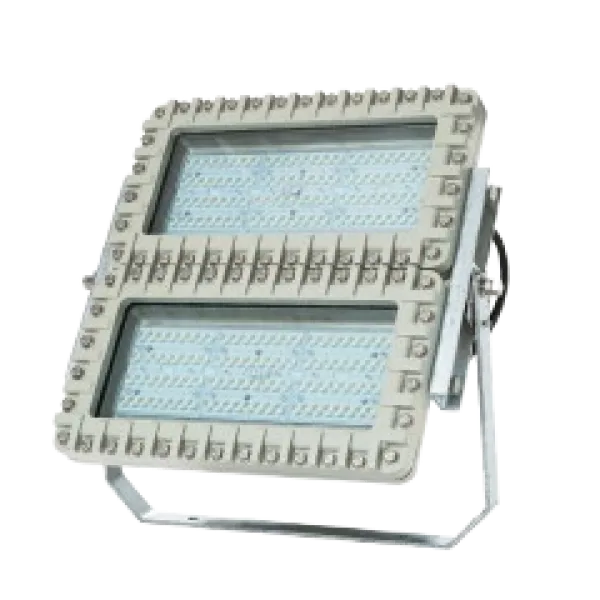

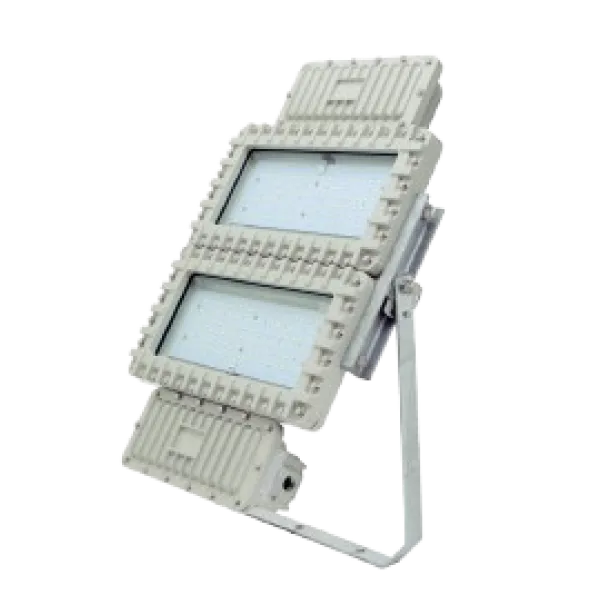

LED Floodlight, DFDF Series

OUR SOLUTIONS

🔍
LED Floodlight, DFDF Series
LED Floodlight, DFDF Series
LED Floodlight, DFDF Series
  1. LED Floodlight, DFDF Series
  2. LED Floodlight, DFDF Series
  3. LED Floodlight, DFDF Series
Download Brochure
Specification
  • Body material : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (grey)
    (optional offshore paintingacrylic polyurethane coating)
  • Lens : Heat and high impact resistant clear glass (4J impact)
  • Bolts : Stainless steel, SUS 304
    (optional SUS 316)
  • Bracket : Hot-dip galvanized steel
    (optional SUS 304 or SUS 316)
  • Sealing (O-ring) : Silicone
LED System
  • Luminous efficient : 120 lm/W
  • Colour temperature : Standard 5700 K (daylight)
    (optional 3000K, 3500K, 4000K, 4500K, 5000K, 6500K etc.)
  • Color Rendering Index (Ra) : ≥ 80
  • Chip : LUXEON 5050 – LumiLEDs
    (optional Cree, Bridgelux, Nichia)
  • Beam angle : Average 100° without lens
    with lens
    30-80W.; 30°, 90°
    100-180W.; 30°, 60°, 90°
    (other beam angle, please specify)
  • Lifespan : >50,000 Hrs.
    (70% lumen maintenance)
