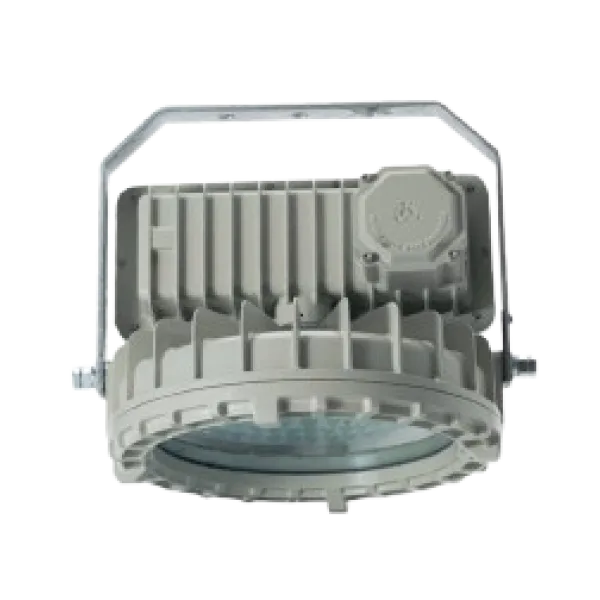

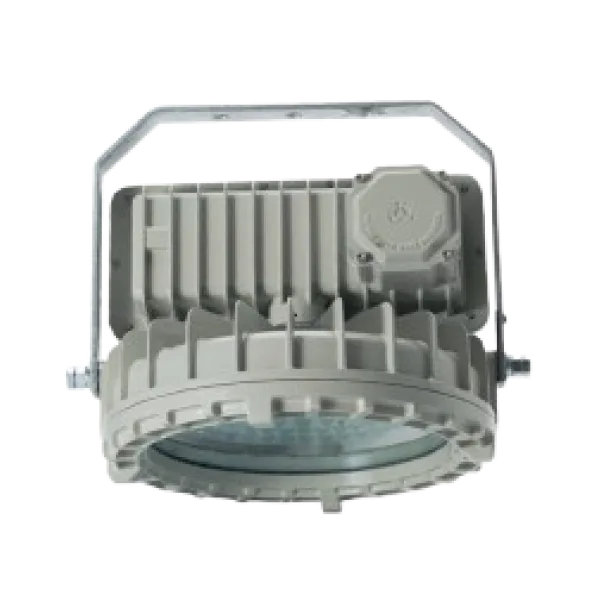

LED High Bay Lighting Fixture, DFDR Series

OUR SOLUTIONS

🔍
LED High Bay Lighting Fixture, DFDR Series
LED High Bay Lighting Fixture, DFDR Series
  1. LED High Bay Lighting Fixture, DFDR Series
  2. LED High Bay Lighting Fixture, DFDR Series
Download Brochure
Application
  • The DFDR series are suitable for zone 1 & 2 Ex-gas and zone 21 & 22 Ex-dust hazardous area, such as chemical, petrochemical, platforms, shipyard, electric power, loading docks, wastewater treatment etc.
Specification
  • Body material : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (grey)
    (optiona offshore paintingacrylic polyurethane coating)
  • Lens : Heat and high impact resistant clear glass (4J impact)
  • Bolts : Stainless steel, SUS 304
    (optional SUS 316)
  • Bracket : Hot-dip galvanized steel
    (optional SUS 304 or SUS 316)
  • Sealing (O-ring) : Silicone
LED System
  • Luminous efficient : 120 lm/W
  • Colour temperature : Standard 5700 K (daylight)
    (optional 3000K, 3500K, 4000K, 4500K, 5000K, 6500K etc.)
  • Color Rendering Index (Ra) : ≥ 80
  • Chip : LUXEON 5050 – LumiLEDs
    (optional Cree, Bridgelux, Nichia)
  • Beam angle : Average 100° without lens
    30°, 60°, 90° with lens
    (other beam angle, please specify)
  • Lifespan : >50,000 Hrs.
    (70% lumen maintenance)
