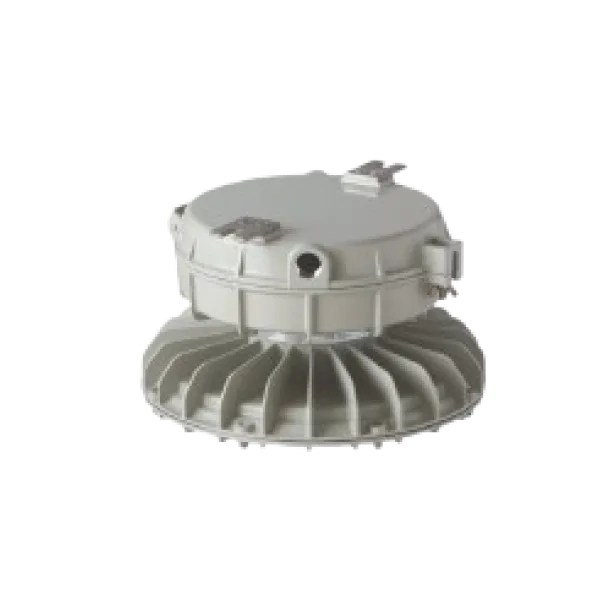

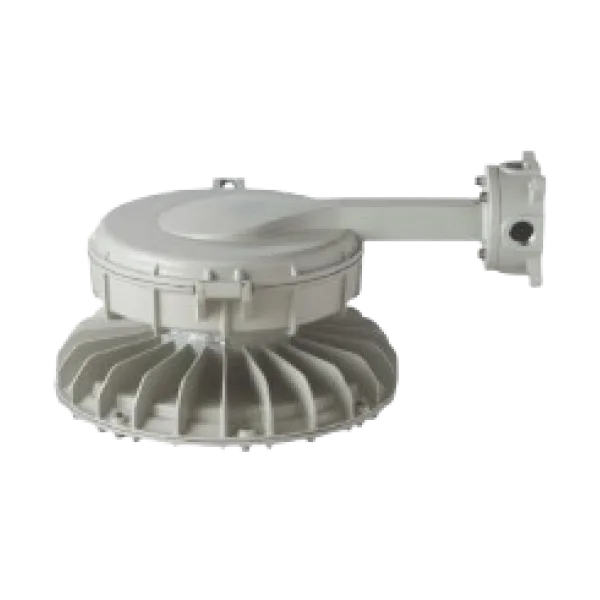

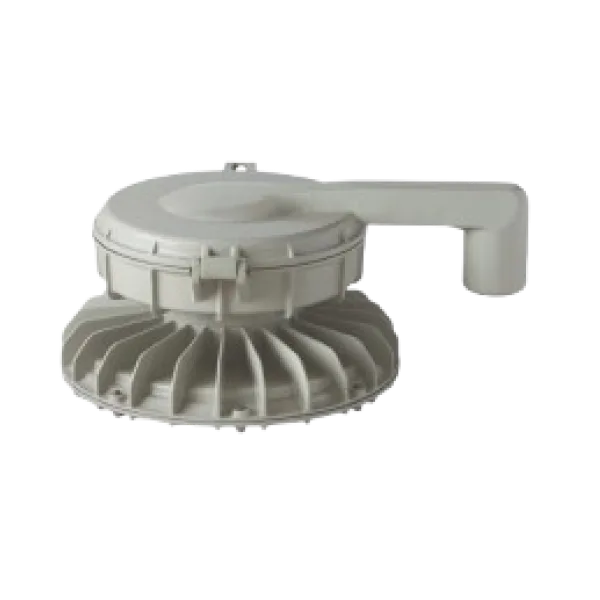

LED Lighting Fixture, NFDR Series

OUR SOLUTIONS

🔍
LED Lighting Fixture, NFDR Series
LED Lighting Fixture, NFDR Series
LED Lighting Fixture, NFDR Series
LED Lighting Fixture, NFDR Series
LED Lighting Fixture, NFDR Series
LED Lighting Fixture, NFDR Series
  1. LED Lighting Fixture, NFDR Series
  2. LED Lighting Fixture, NFDR Series
  3. LED Lighting Fixture, NFDR Series
  4. LED Lighting Fixture, NFDR Series
  5. LED Lighting Fixture, NFDR Series
  6. LED Lighting Fixture, NFDR Series
Download Brochure
Specification
  • Body material : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (grey) (optional offshore paintingacrylic polyurethane coating)
  • Lens : Heat and high impact resistant clear glass (4J impact)
  • Bolts : Stainless steel, SUS 304 (optional SUS 316)
  • Bracket : Hot-dip galvanized steel (optional SUS 304 or SUS 316)
  • Sealing (O-ring) : Silicone
LED System
  • Luminous efficient : 120 lm/W
  • Colour temperature : Standard 5700 K (daylight) (optional 3000K, 3500K, 4000K, 4500K, 5000K, 6500K etc.)
  • Color Rendering Index (Ra) : ≥ 80
  • Chip : LUXEON 5050 – LumiLEDs
    (optional Cree, Bridgelux, Nichia)
  • Beam angle : Average 100° without lens
    with lens
    40-80W.; 90°
    100-150W.; 30°, 60°, 90°
    (other beam angle, please specify)
  • Lifespan : >50,000 Hrs.
    (70% lumen maintenance)
